ANSI / BS / DIN pitch tables - ISO 606 - JIS B 1801
Tsubaki Chain indexed by pitch, load and lubricant grade.
Select roller chain, attachment chain, conveyor chain and backstop clutch references from a compact engineering catalog built for OEM design teams and MRO buyers who need repeatable specification language.
Compare chain families before opening a quotation.
| Parameter | Lambda self-lube chain | Heavy duty roller chain |
|---|---|---|
| Primary use | Clean plants with limited relubrication access | Shock loaded conveyors, mixers and drive shafts |
| Pitch range | ANSI 35 to 80, BS 06B to 16B | ANSI 60H to 240H, selected multi-strand |

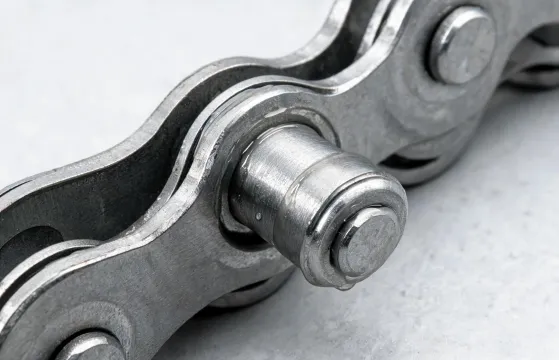

| Engineering anchor | Oil impregnated bushing, lower maintenance interval | Higher plate thickness and fatigue margin |
| Review data | Speed, ambient dust, washdown frequency, chain length | Start torque, duty cycle, sprocket tooth count, SF target |
Keep pitch, attachment and maintenance data in one place.
Lambda self-lube selection without catalog sprawl.
Maintenance planners can compare Lambda self-lube chain against standard roller chain using the same pitch, load and ambient notes, so the final request stays short and technically reviewable.

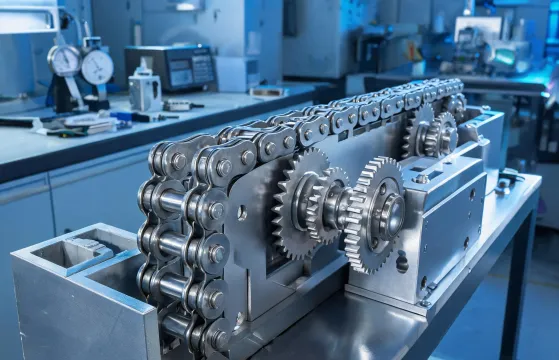

Attachment layouts tied to conveyor function.
Carrier tabs, extended pins, side plates and corrosion notes are captured with the application, reducing the back-and-forth that usually happens after a drawing revision.

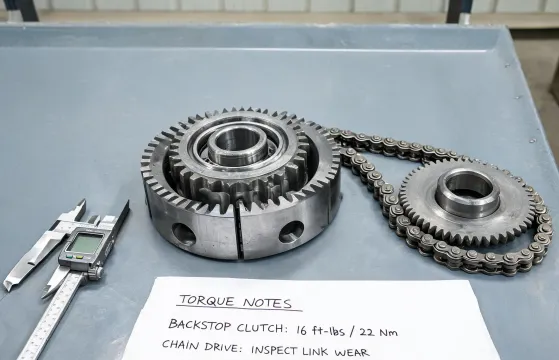

Backstop clutch references stay visible.
Applications with inclined conveyors or non-reversing shafts can be routed to chain and backstop specialists together, keeping shaft speed, torque and mounting orientation in one engineering note.
Send pitch, load and environment data for engineer review.
Get a concise chain recommendation path before committing a replacement order or OEM drawing update.
